The Car

The Car

2015 Iggy MkII

The Team 2015

2014 Iggy MkI

The Team 2014

2013 Roxanne

Image of Omega in readyness for the Townsville 400

Engine

Honda CBR600F2

Configuration

4 cylinder inline DOHC

Displacement

600cc

Fuel delivery

Custom fuel injection system

Exhaust

Custom 4-1 system

ECU

Adaptronic 440 Universal

Power output

90hp (67kW)

Car Specifications

  • Wheelbase – 1.7m

  • Top speed – 105km/h

  • Max Designed Lateral G-force – 1.7g

  • Final Drive Ratio – 3.33

  • Tube Chassis

  • Carbon Fibre Dash, Body, Seat

  • Fully Braided DOT Standard Brake Lines

  • Custom High Strength Alumec Aluminium Uprights

  • Quick Release Steering

  • Double Wishbone Fully Adjustable Suspension

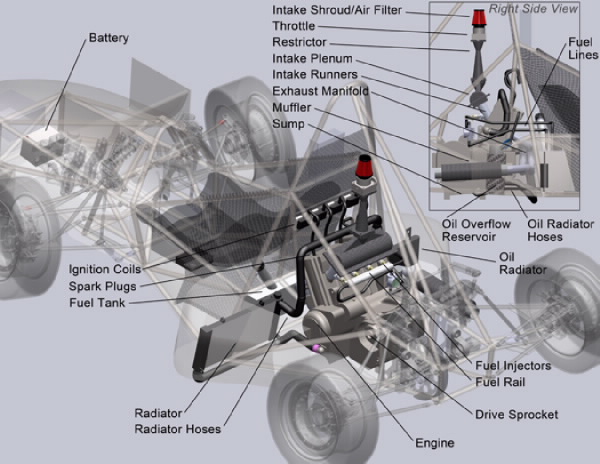

2013 Engine Design

The engine section incorporates everything from the intake manifold down to the mufflers and the main rotary parts including engine, transmission and drive sprocket.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar03.jpg

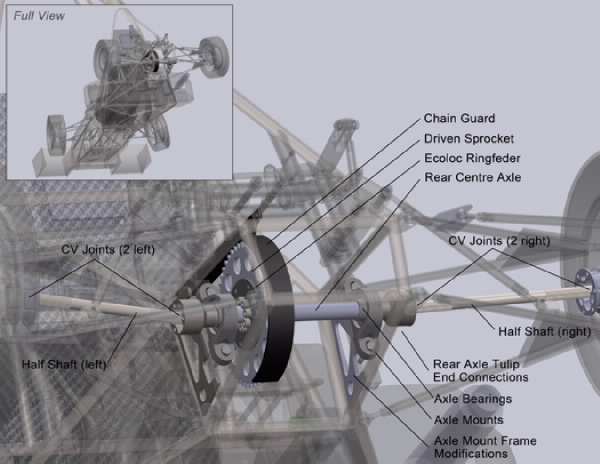

2013 Drivetrain Design

The drivetrain incorporates all components connecting to the drive sprocket at the engine, to the CVs connecting to the hub shafts at the wheels. Being a chain driven drive assembly, this also includes chain guards, shaft mounts, etc.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar02.jpg

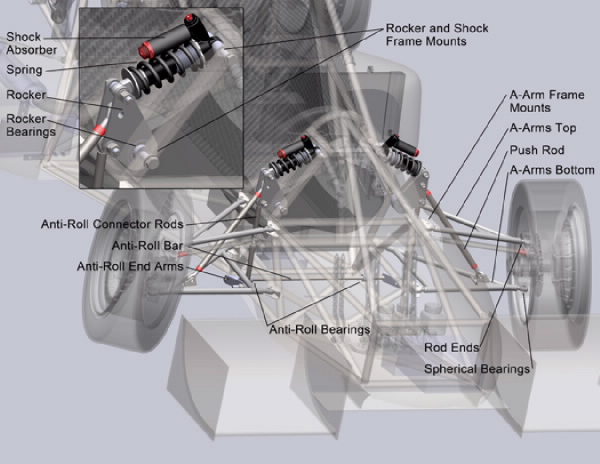

2013 Front Suspension Design

The Roxanne front suspension design is a double wishbone arrangement with load transferred to a combined spring and shock absorber through a push rod. The design also incorporates and anti-roll bar to improve cornering performance.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar04.jpg

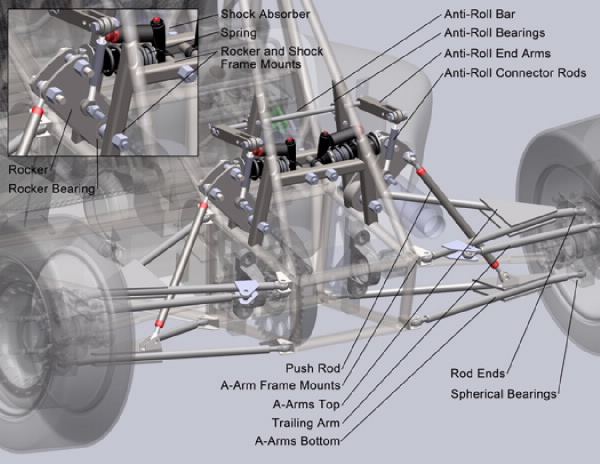

2013 Rear Suspension Design

The Roxanne rear suspension design is also a double wishbone arrangement with load transferred to a combined spring and shock absorber through a push rod. The design again incorporates and anti-roll bar to improve cornering performance.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar05.jpg

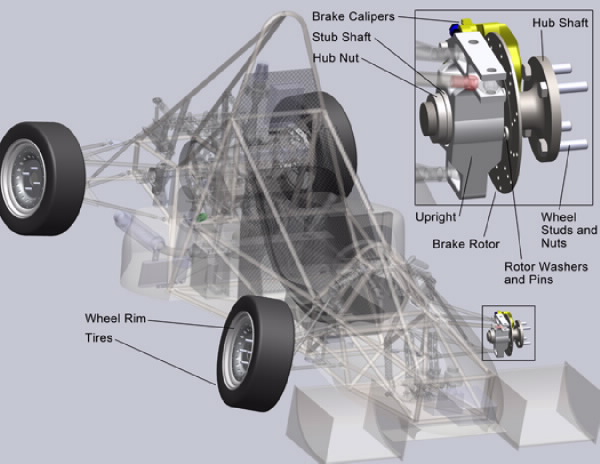

2013 Wheel Assembly Design

The wheel assembly includes all components from the contact patch between the tire and the ground, to the pickup points with the suspension A-arms. Primarily, this is the wheels, uprights and all running shafts and brake components.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar07.jpg

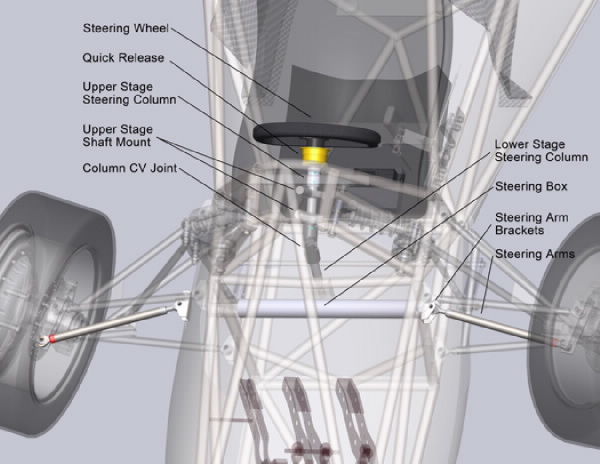

2013 Steering Assembly Design

The steering assembly incorporates the steering wheel, column, box, arms and all connections and mounts.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar06.jpg

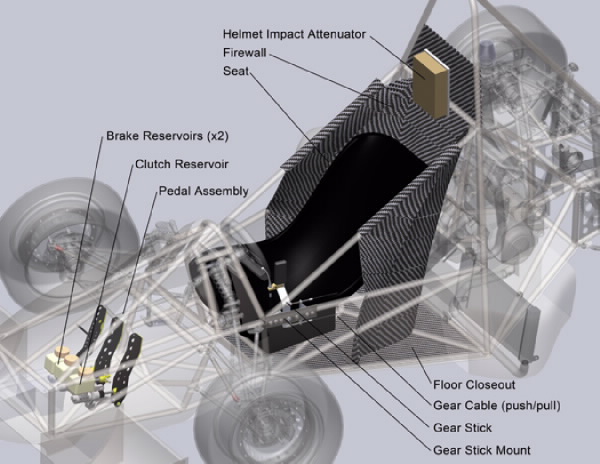

2013 Driver Cockpit Design

The driver cockpit includes all driver controls (other than steering), seating, restraint, protection, etc.

C:\Users\holmes\Documents\Class Work\Motorsports\Website\images\final\TheCar01.jpg
