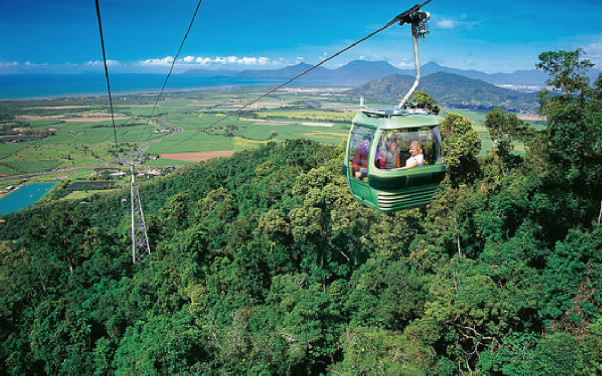

Skyrail

Seven years of pre-construction feasibility studies included an Environmental Impact Study and numerous other reports and assessments, and consultation and approval processes with 23 different local, state and federal government agencies.   Despite environmental protest, approval was finally granted and construction began in 1994.

Skyrail’s tower sites were selected to coincide with existing canopy gaps and clearings, and were surveyed to ensure no rare, threatened or endangered species would be affected by construction. Before construction commenced on the tower sites, the leaf litter and top soil was collected and stockpiled for reintroduction when construction was complete. Plant seedlings were catalogued at each site, then removed and propagated during construction, and re-planted in their original locations, with the saved top soil and leaf litter, when construction was complete. As a result, the environment was returned to its original state as much as possible.

Due to the size of the tower sites, they were difficult to locate from the air, and GPS satellite navigation and radio communication was used to enable the helicopter crews to pin point the ground crews and tower sites.

Specialist, heavy-lifting, Russian Kamov helicopters were used extensively to assist construction. The helicopters were used to carry equipment, materials and cement to tower sites and rainforest stations. To prevent wind turbulence from disturbing the delicate rainforest canopy, the loads were dangled from 100 metre long lines, so that the blades never came close to the trees.  The towers themselves were flown-in in sections and assembled on site; some tower sections weighed up to five tonnes each. The cableway haul rope was then laid and tensioned across towers by the helicopters.

Skyrail passes through the Barron Gorge National Park and the Wet Tropics World Heritage Area, the latter being listed due to its outstanding universal/global value. The Wet Tropics World Heritage Area has worldwide recognition for its spectacular scenery, rugged topography with fast-flowing rivers etched with deep gorges and cascading waterfalls and panoramas of undisturbed rainforest as far as the eye can see. Stretching from Cooktown to Townsville in tropical north Queensland, this area is a living museum of ancient plant and animal species found nowhere else in the world. Wet Tropics World Heritage Area forests are home to many rare and endangered animal species, some that have changed very little since prehistoric times.

Red Peak is Skyrail’s highest station at 545 metres above sea level (1,788 feet). The Kuranda Station sits at 336 metres (1,100 feet) and Smithfield Terminal is only 5 metres above sea level (16 feet).

Crews cleared an area no larger than 10 metres by 10 metres to build each cableway tower, and towers were placed as far apart as possible.

The tower footings were built largely by hand, up to five metres deep in some cases, using picks and shovels. There were no roads built during Skyrail’s construction. Workers had to walk in to the remote tower sites each day, carrying their equipment, which took up to an hour each way.  Contamination was rigorously managed with boot sterilisation occurring before going in and out of the rainforest.

In 1995, Skyrail introduced full time Rangers to conduct interpretive boardwalk tours at Red Peak Station and in 1996 the CSIRO released ‘The Dynamic Rainforest’ CD ROM. This product features rainforest information and facilities featured in the CSIRO Interpretation Centre at Skyrail’s Barron Falls Station.

There are 32 towers in total. The highest tower is 40.5 metres (133 feet) high.

An interesting aspect of the design is the prefabricated roof steel space frames which were designed for 80m/s cyclonic wind loads, helicopter transportation and placement.  Major considerations were weight and tolerances of specifically designed connections for placement by helicopter.

The engineering design pushed the limits of structural efficiency. This not only had a huge bearing on cost outcomes it also reduced the overall construction mass in this sensitive natural environment.

The Red Peak and Barron Falls Stations were designed to blend in with the rainforest surroundings and minimise environmental impact, and were built in pre-existing clearings. Red Peak Station is nestled amongst pristine rainforest with a 175 metre long boardwalk to explore the forest from ground level. The Station is surrounded by towering trees, lush palms, giant ferns and a diverse array of plants and wildlife.

The Barron Falls station is also home to the state-of-the-art Rainforest Interpretation Centre. The Centre, developed in conjunction with CSIRO, Australia’s premier scientific research organisation, houses a visual and interactive presentation of the rainforest environment.

The Smithfield terminal is open plan and breezy, designed in a traditional Queenslander style of architecture with wide verandahs and open access areas, making it easy to access the Skyrail’s ticketing and boarding pass collection point. The Kuranda terminal is designed to complement the heritage listed Kuranda Scenic Railway station buildings built in the early 1900’s.

The main structures are primarily built of steel, reinforced concrete and composite steel and concrete floors. Helicopters transported 900 tonnes of steel, cement and building materials into the Red Peak Station site alone.

The Red Peak station was originally to have separate foundations for the POMA cableway structures. The extent of the underground concrete footings proposed by POMA from the USA was reviewed by local engineers. Innovative engineering solutions reduced the size of the footings by incorporating the tail wheel tower footings with the building footings. 150 cubic metres of concrete was saved from having to be helicoptered in.

Innovative design also minimised the lengths of steelwork for helicopter lifting and employed permanent steel formwork for concrete slabs to minimise standard scaffolding and formwork propping requirements in this sensitive environment.

Skyrail Rainforest Cableway also has 15 kilometres of 40.5mm galvanised steel rope weighing more than the equivalent of 100 sedan cars.

There is a multi-core communications cable which runs in the middle of the towers, between the two lines of haul rope. This carries all the voice and safety circuit communications.

Over 90% of infrastructure lighting is fluorescent, rather than incandescent. Air conditioning is installed only in administration areas and areas housing sensitive electronic equipment. Maximum use of natural light is encouraged in buildings during daylight hours.

The need for air conditioning and lighting is minimised through the passive design of buildings. Automatic controls (e.g. timers, movement sensors) and a solar powered communication system service all cableway gondolas.

The cableway is driven by a 383kW (500hp) D.C Electric Motor located at each drive station, the Kuranda and Smithfield Stations. Each drive station has a back-up diesel motor and a further auxiliary Hydrostatic Drive.

Skyrail is committed to using minimal water in its operation and to protecting the World Heritage values of the rainforest by eliminating the possibility of harmful liquid waste entering the rainforest. Initiatives to reduce freshwater use and wastewater generation include:

• Monitoring water quality from stormwater and testing for hydrocarbon and diesel as a part of this process
• Installing only cold water taps in toilet facilities at all stations using bore water for garden irrigation wherever possible
• Installing rainwater collection tanks where the rainwater undergoes ultra violet sterilisation for use at Skyrail’s mid-stations
• Installing Clivus Multrum composting toilets and a set of detailed procedures are including in an Integrated Environmental Management System for testing and removing Liquid End Product (LEP)
