Cisco SX10_SX20

Cisco SX10 Control

Cisco SX10 remote

Screen layout

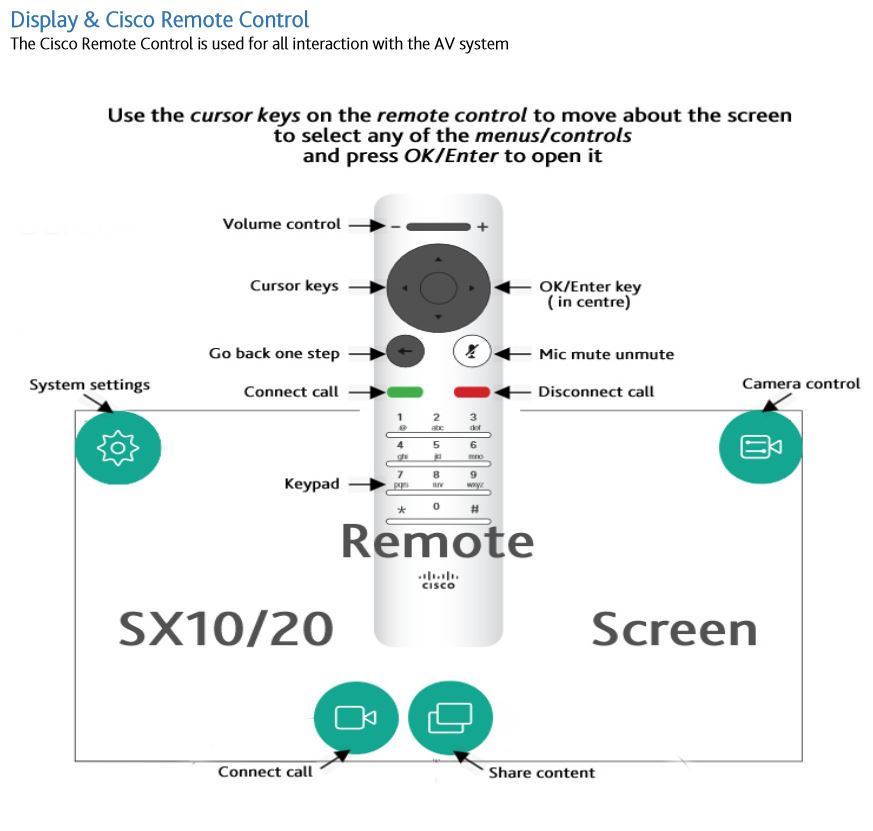

Use the remote control to navigate to the icons representing Settings (cog wheel), Camera, Call and Share buttons on the screen. A Green cursor indicates the icon selected.

sx10 screen

System Settings

Navigate to the Settings icon (cog wheel) located at the top left of the screen and press the OK button on the remote. The dial in number for the system will be shown with options to select 'Do not disturb' and show System Information. Push to Back button on the remote to exit.

System settings

Camera Control

Navigate to the Camera icon (camera) located at the top right of the screen and push the OK button on the remote. Use the Cursor buttons to pan and tilt or the -/+ buttons at the top of the remote to Zoom in/out. Push the Back button to exit the camera control

Camera control

Make a call

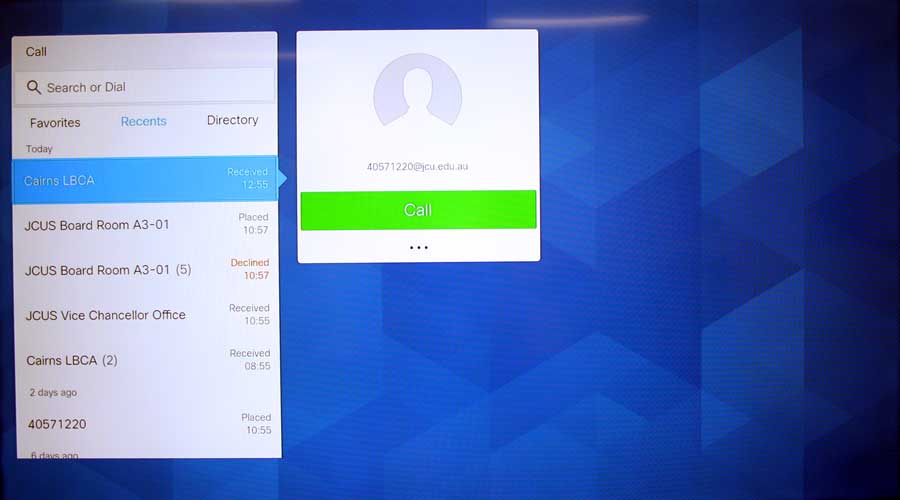

Navigate to the Call button (Handset icon) located along the bottom of the screen and push the OK button on the remote control. Select a Far End room from the Favourites, Recents or Directory and push the Green button on the remote control to make the call. Push the -/+ button along the top of the remote control to adjust the volume of the Far End.

Address book

Show presentation

An HDMI cable is provided to connect a laptop to the AV system. Ensure the laptop is set to Duplicate or Mirror its display then navigate to the Share button on the screen using the remote control. Push the OK button to start sharing the presentation.

sharing
