Document Camera Lumens DC-170

User guide

The visualizers or document cameras have to a large extent replaced the Over Head Projectors and are wired into the VAVS switching controls for ease of use. They can be used to show documents, handwritten notes, book pages, objects of interest and much much more. Your imagination is the limit!

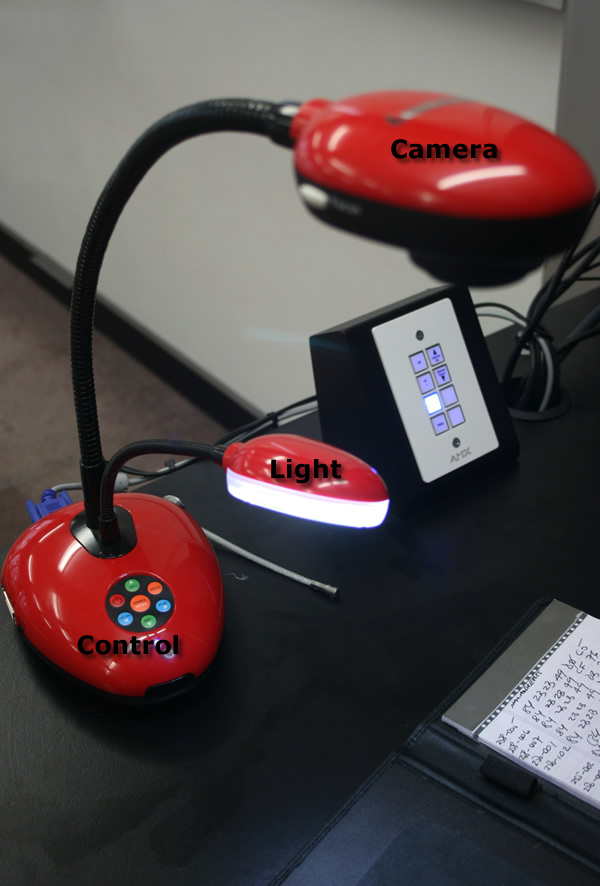

The lamp and camera positions can be changed manually by moving the individual arm and head.

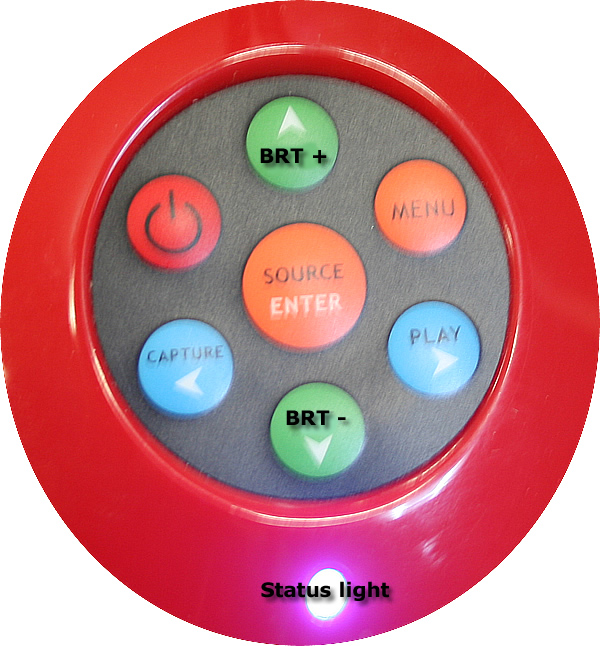

  • The Status light is red when the unit is in standby.
    To turn the unit on, press the Power button on the control. The status light will flash blue while the light is warming up. When the unit is ready for use, the status light will show a steady blue.

  • To change to brightness, press the BRT+(green up arrow) and BRT-(green down arrow) to adjust.

  • To turn the unit off, press the Power button on the control. The Status light turns to a steady red.
