User guide - Lumens PS760

The visualisers or document cameras have to a large extent replaced the Over Head Projectors and are wired into the AV switching controls for ease of use. They can be used to show documents, handwritten notes, book pages, objects of interest and much more. Your imagination is the limit!

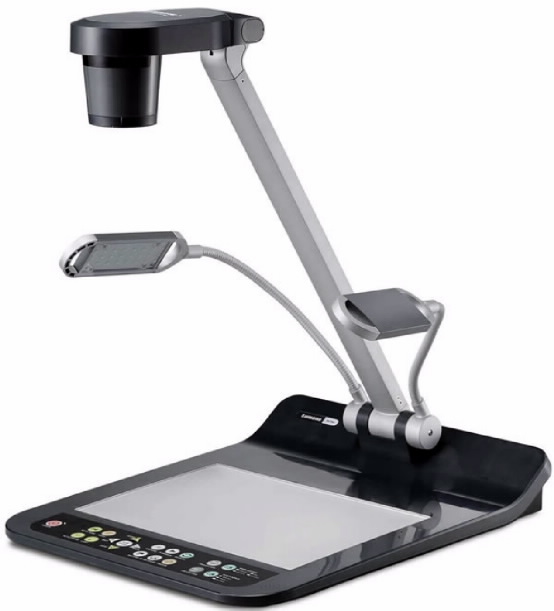

lumens ps760 doc cam

The positioning of the two lamps can be changed manually by moving the individual arms.

The key features of this device are:

  • High Definition (1080p, WXGA, SXGA and XGA)

  • 20x optical zoom

  • HDMI output

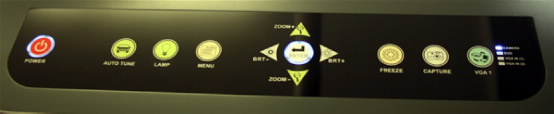

Control buttons:

ps760 control

power

POWER – press the button to turn on/off

Stand-by, indicated by a red glow around the button

On, indicated by a blue glow around the button

auto tune

AUTO TUNE

Press to automatically set best focus and brightness

lamp

LAMP - The lamp has three settings – press the button to change

  1. Arm Lamp (from above)

  2. Backlight

  3. Off

vga

VGA 1 – The unit defaults to the camera being lit up

Press the button to change if necessary



Brightness and zoom

[BRT+]  increase brightness
[BRT-] decrease brightness

[ZOOM+] zoom in
[ZOOM-] zoom out


 Can be operated by software installed on Dell 9030 PC in rooms 27-001, 27-002, 27-003, 27-004, 27-005 and 27-006. Click on PodiumView to learn how.
