CCC 103 Collaborative Work Group Table

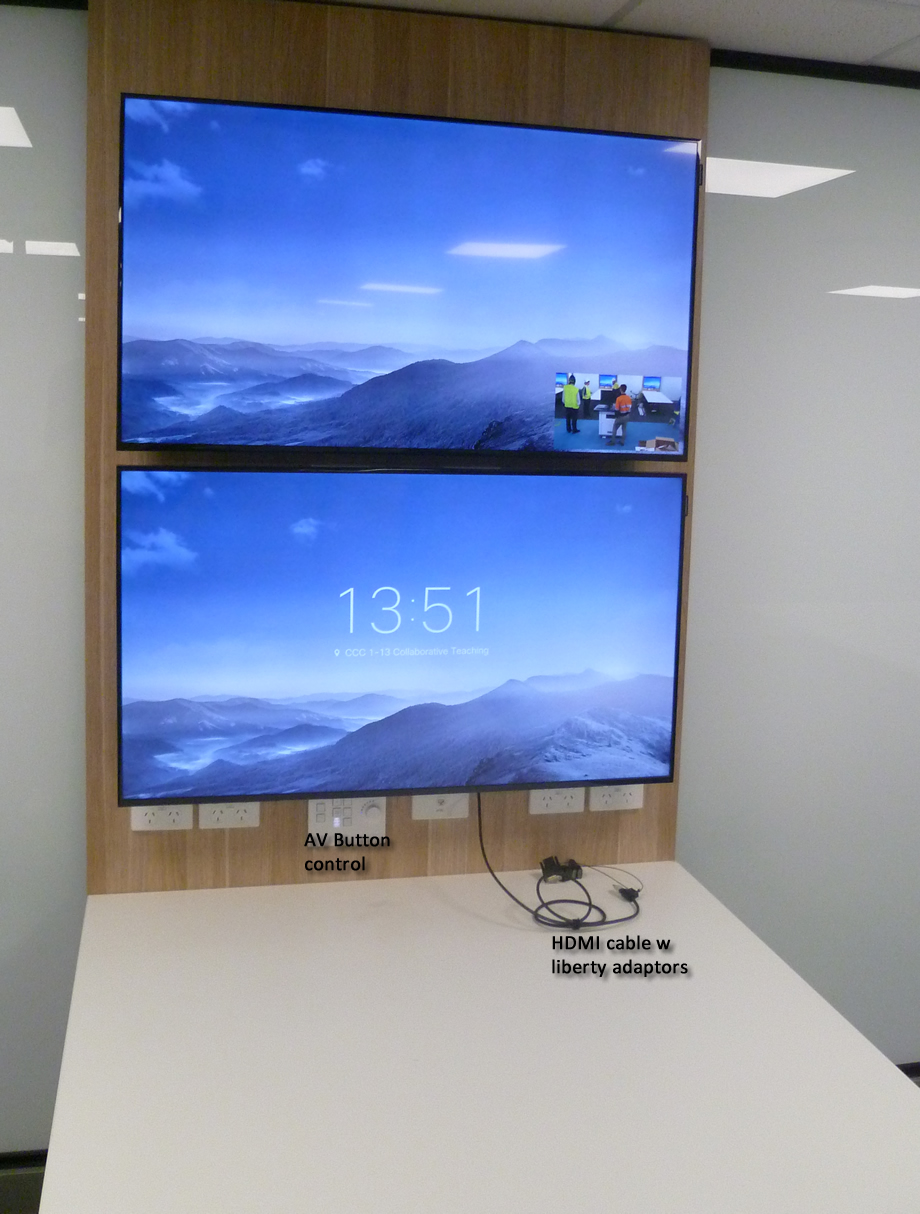

Two Monitors, mounted on a wall above eachother over a desk.

There are nine group tables located throughout the room each seating six persons.

Each group table is fitted with the following equipment/controls

  • 2x Flat panel display  – wall mounted adjacent to the table (referred to as top and bottom screen)
  • HDMI cable (with liberty adaptors for laptops with other output connectors) for connecting a laptop at the table.
  • 8-button AV control – wall mounted below the flat panel display - for input and volume control

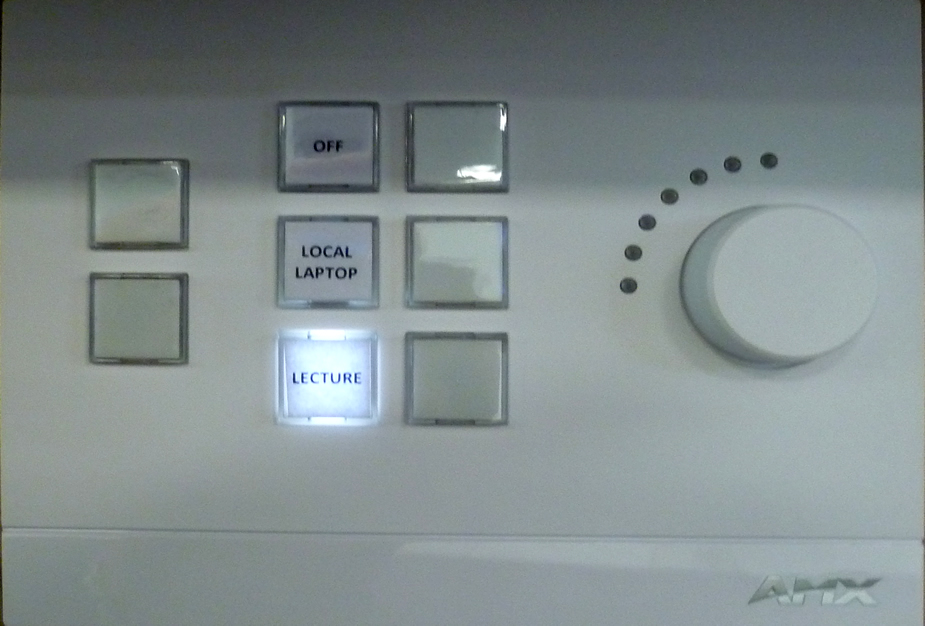

8-button AV control

Picture of 8 Button Av control pannel

  • Off - turns off both flat panel displays
  • Local Laptop - Press to show a laptop connected to the AV system at the table
  • Lecture - button will light up when media (PC, laptop, wireless presenter or document camera/visualiser) is pushed from the lectern to the work group tables by the presenter/lecturer
  • Round knob - adjust volume
